Aesthetics meet stability

The Dynamic 3D universal door hinge range from SFS has been extended to offer greater load handling and increased stability. These hinges also attract the eye with their slim design and range of colour and material options.

Added value


  • Up to 160 kg load bearing
  • Suitable for fire doors
  • Certified to CE EN 1935-2002 and patent protected

High demands
The demands made on today’s hinges can be immense. Extremely heavy doors have to be supported, while their constant daily use calls for long-term stability and functionality. At the same time the aesthetic aspects have to be considered. Ideally the appearance of the hinge should reflect the door and its surroundings. All these requirements are met in spades by the new Dynamic 3D hinge range from SFS.

SFSC_AesthetiktrifftaufStabilitaet_2019
New Dynamic 3D hinge range

Sophisticated technology
To ensure maximum load bearing, the Dynamic 3D 20 mm dia. is divided into three sections retained by a continuous powerful bearing bolt. In addition, the integrated, maintenance-free sleeve bearing ensures along-term, easy door closure.

Facts at a glance:

  • Simple and speedy installation
  • Available to fit two rebate sizes: 16 mm and 20 mm
  • Adjustments in height, width and contact pressure achieved with ease
  • Integrated slide bearing, offering lasting, easy door closing
  • A wide range of standard and even customer-specific powder coat colours

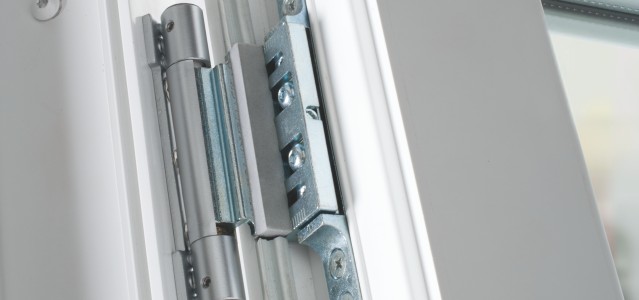

SFSC_AesthetiktrifftaufStabilitaet_Fensterscharnier_2019

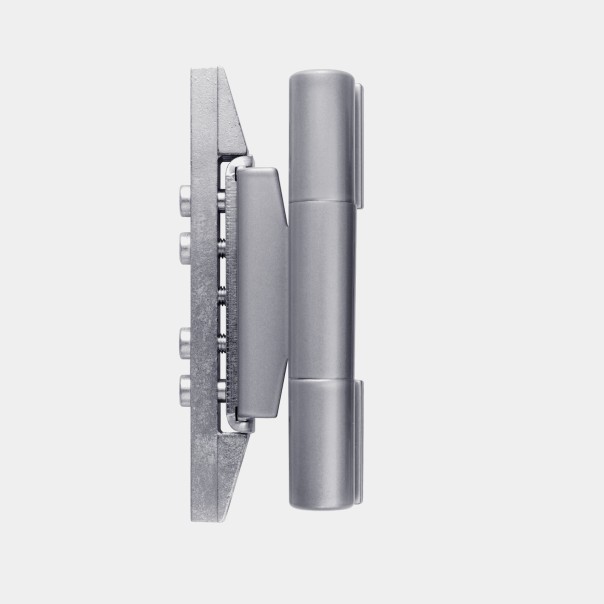

Perfect setting of the hinges thanks to the three-piece construction and through bearing bolt

A real head turner
The simple adjustments (+/– 4 mm in height, +/– 3 mm sideways and +/– 2 mm contact pressure) are all made with a 4 mm allen key. These very effective fine setting adjustments, coupled with the drill guide provided, ensure rapid, easy installation. The technical strength of the hinges has been proven by rigorous SFS in-house tests, performing 200,000 successive door opening and closing cycles. The 20 mm dia. Dynamic 3D is available in a wide range of powder coat colourways and even customer-specified shades if required.
